PIStream is a power integrity design tool for PCB that will help you meet your target impedance and reduce transfer impedance. Use PIStream to achieve target impedance by adding/moving capacitors, plane shapes, and Power/GND plane distances. Transfer Impedance Analysis function helps reduce noise propagation between aggressor and victim ICs. Graphic-based PIStream is easy to use and offers speedy analysis. Start working with PIStream to improve power integrity and save time and money.
![](/skin/img/sub/product02-1-1.jpg)

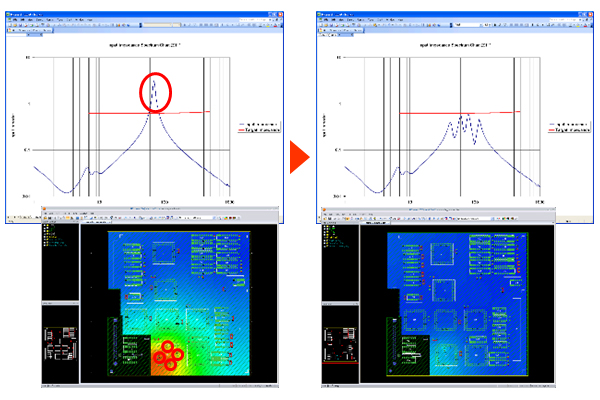

Input Impedance Analysis
PIStream calculates input impedance and helps you meet your target impedance by adding de-caps, changing the capacitor location, and changing the power plane thickness and shape.
![](/skin/img/sub/product02-2-1.jpg)

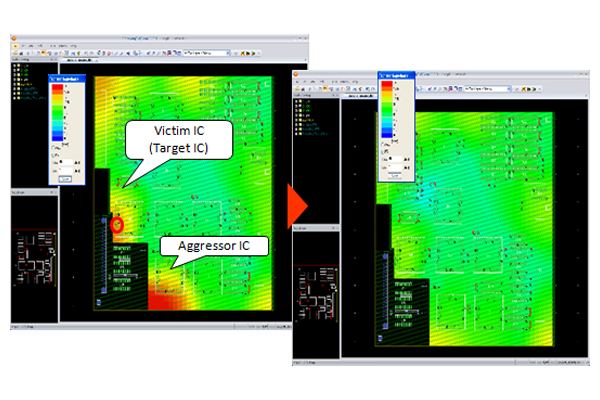

Transfer Impedance Analysis
PIStream calculates transfer impedance to avoid noise transition to other ICs and internal RF interference. The following figures show the results of transfer impedance analysis.
![](/skin/img/sub/product02-3-1.jpg)

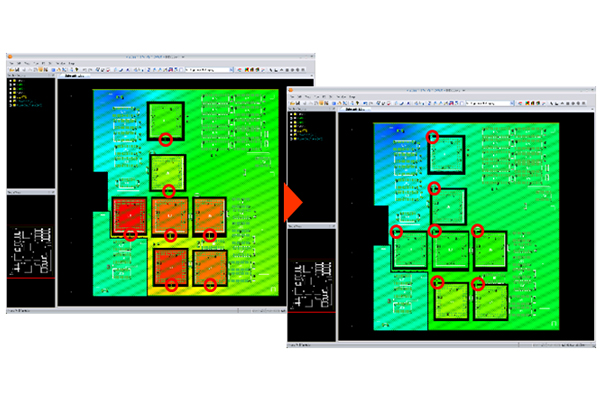

DC Analysis(IR Drop)
PIStream also calculates IR Drop and displays color gradation as well as the IR Drop value for each IC.
