EMC Visualizing System
To resolve the issue for electro magnetic effect or electrical effect to human body or peripheral equipment and error caused by noise which ICT equipment design facing to.
EMC visualize system is the solution for “reducing noise from parts/equipment”, “protect peripherals from noise” and “error occurred by electrical serge from human body”. Solving these issue bring shorten development Period
and reduce R&D cost.
ESD(Electro-Static Discharge ) / Impulse Visualizing System

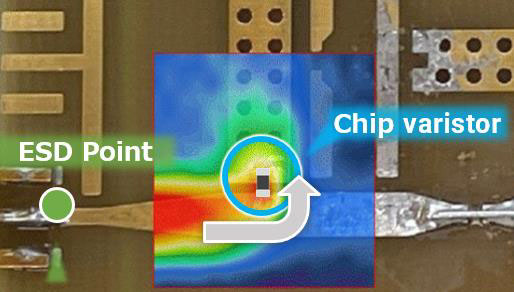

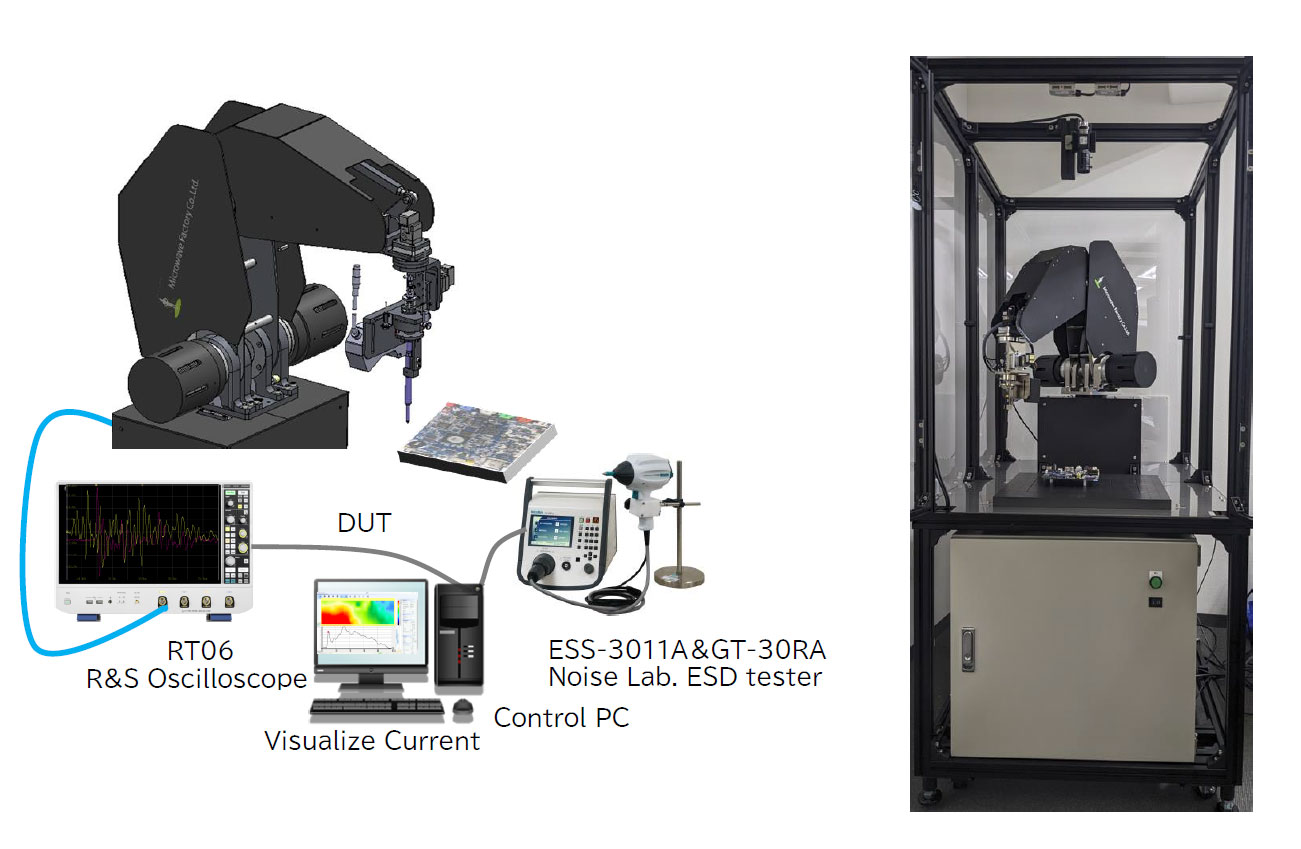

ESD visualize system automatically scan ESD current flow using non-contact magnetic probe, visualize current path and visualize result for ESD counter measure.
EMI(Electro-Magnetic Interference) Visualizing System

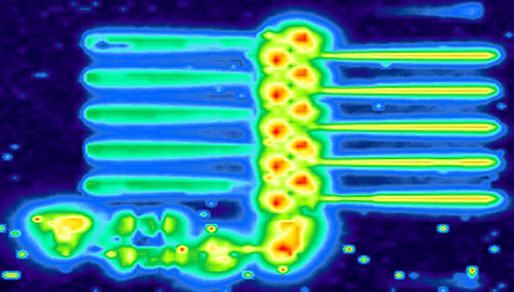

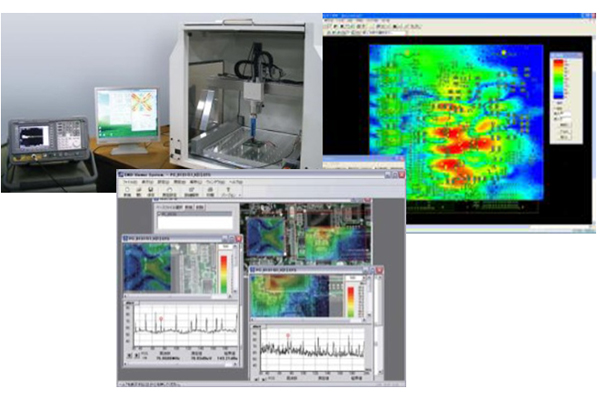

EMI visualize system automatically scan object with magnetic probe, display electro-magnetic field distribution (noise). Using PC, system control scanner and spectrum analyzer and figure out noise cause and effect of solution in office environment.
Measurement data analysis
- Frequency display
- Magnetic field distribution (map) display
- Frequency points, frequency range, harmonics and peak search
- XY composition
- EMI Control design assistance (option when using EMI Stream)
4EM500 High-Accuracy EMC Scanner
High-Accuracy EMC scanner capable of measuring noise from a range of targets including semiconductors and housings. Automatic probe height adjustment and Lase positioning/identify function (option).
| Target application | Equipment, PCB, Module, units, etc. | |
|---|---|---|
| Measurement method | Magnetic scan using 4 axis stage | |
| Measurable range | X, Y, Z = 500 x 500 x 210 (mm) θ= -90 to +90 degree |
|
| Measurement step | X, Y, Z = 0.01mm θ= 1 degree | |
| Available probe | CP-2S, MP-10L, etc. | |
| Size | 860(W) x 862(D) x 840(D) (except protrusion) | |
| Weight | 110kg (approx.) | |
| Power | AC 100-240V 50/60Hz | |
| Control I/F | Motor control board (USB or PCI Express) | |
| Instruments | EMI | Spectrum analyzer, Pre-Amp |
| ESD | Oscilloscope, ESD gun | |
| Impulse | Oscilloscope, Impulse Simulator | |
4EM200U Small EMC Scanner
Portable type EMC scanner. 4EM200U features a space/cost saving.
| Target application | Equipment, PCB, Module, units, etc. | |
|---|---|---|
| Measurement method | Magnetic scan using 4 axis stage | |
| Measurable range | X, Y, Z = 200 x 200 x 210 (mm) θ= 0, 90 degree ( Two angle) |
|
| Measurement step | X, Y, Z = 0.05mm | |
| Available probe | CP-2S, MP-10L, etc. | |
| Size | 297(W) x 420(D) x 500(D) (except protrusion) | |
| Weight | 15kg (approx.) | |
| Power | AC 100-240V 50/60Hz | |
| Control I/F | Motor control board (USB) | |
| Instruments | EMI | Spectrum analyzer, Pre-Amp |
| ESD | Oscilloscope, ESD gun | |
| Impulse | Oscilloscope, Impulse Simulator | |
EMC Scanner System
Product line up Magnetic probe
Specification
| Magnetic Probe | CP-2S | MP-10L | AEKP001 | ALMP001 |
|---|---|---|---|---|
| Frequency Range | 10MHz~3GHz | 150kHz~1GHz | 9kHz~30MHz | 100kHz~3GHz |
| Resolution | 0.25mm | 1.0mm | 1.9mm | 1.0mm |
| Head Size | 2*1mm | 12*3mm | 9mm*3.5mm | 12mm*3mm |
| IEC61967 |
